Understanding NFPA 704 Diamond

The NFPA Diamond, also known as the NFPA 704 hazard identification system, is a safety labeling system developed by the National Fire Protection Association. It is widely used in industries, laboratories and chemical storage areas to quickly communicate the hazards of chemicals to workers and emergency res-ponders. The diamond-shaped symbol uses four colored sections with numbers and symbols to indicate the level and type of hazard present.

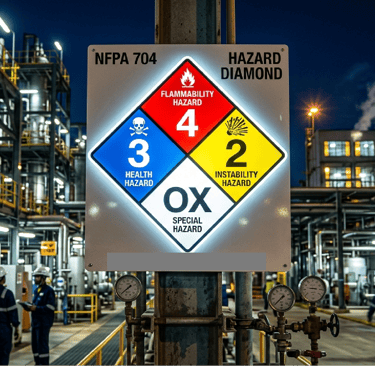

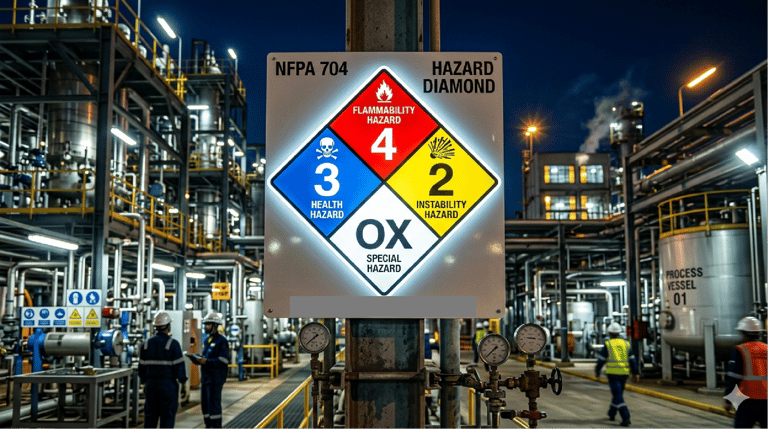

Structure of the NFPA Diamond

The diamond is divided into four colored sections, and each section represents a different type of hazard:

1. Blue – Health Hazard
This section indicates the potential health risk from exposure to the chemical.

4 – Severe hazard (life-threatening)

3 – Serious hazard (serious or permanent injury)

2 – Moderate hazard (temporary injury)

1 – Slight hazard (minor irritation)

0 – No health hazard

2. Red – Flammability Hazard
This shows how easily the chemical can ignite.

4 – Extremely flammable

3 – Can ignite at normal temperature

2 – Ignites when moderately heated

1 – Must be preheated to burn

0 – Will not burn

3. Yellow – Reactivity / Instability
This section indicates how likely the substance is to react or explode.

4 – May detonate

3 – Shock or heat may cause explosion

2 – Violent chemical change possible

1 – Unstable if heated

0 – Stable

4. White – Special Hazards
This section provides special information about the chemical. Examples include:

OX – Oxidizer

ACID - Acid

ALK - Alakali

W – Reacts dangerously with water

SA – Simple asphyxiant gas

Importance in Workplace Safety

The NFPA 704 diamond plays a vital role in chemical safety and emergency response. Workers can quickly understand the risks of chemicals stored in tanks, containers or process areas. During fires or chemical emergencies, firefighters and emergency teams rely on the diamond to determine the hazards and select the correct firefighting and protective measures.

Conclusion

Understanding the NFPA 704 diamond system helps employees recognize chemical hazards instantly and take appropriate safety precautions. Proper training on hazard identification systems like NFPA 704 improves workplace safety, supports emergency response and helps prevent accidents in industries handling hazardous chemicals.
